A quick comparison of our MicroController Products:


Product
Processor
Cores		 Flash
Mem		 Static
RAM
EEPROM		 GSM Chipset
GSM
WiFi
Bluetooth
GPS
Price
Clearance
Notes
ESP324G Expressif ESP32 2 4MB 520K   SIM7600A 4G Yes Yes Yes $99.00
EGGBoard 3G ATMega2560 1 256K 8K 4K SIM5320A 3G Yes $79.00
MeGGaBoard 3G ATMega2560 1 256K 8K 4K SIM5320A 3G     Yes $69.00
EGGBoard 2G ATMega2560 1 256K 8K 4K SIM900A 2G     Yes $99.00 $25.00 1, 2
MeGGaBoard 2G ATMega2560 1 256K 8K 4K SIM900A 2G     Yes $68.00 $20.00 1
GBoardHS ATMega2560 1 256K 8K 4K SIM900A 2G     Yes $59.00 $15.00 1, 2
GBoard ATMega328P 1 32K 2K 1K SIM900A 2G     Yes $46.00 $10.00 1, 2



Note 1:  2G Service has largely been discontinued in the USA.  However, GPS Functionality does NOT require a SIM or active cellular service!
Note 2:  FOCA (USB to Serial) Board is required for programming these boards.  One FOCA Board can be used to program multiple GBoards.



ESP324G Board (4G):

The ESP324G board is basically an ESP32 WROOM chip married with to a SIMCOM7600A GSM chip.  (The ESP32 is fully Arduino IDE compatible for project development).  This board not only has the built-in WiFi and Bluetooth capabilities provided natively by the ESP32, but also full 4G voice, data, and SMS capabilities, as well as GPS/GNSS location services provided by the SIM7600A.  If you are looking for a single board which provides completely integrated WiFi, Bluetooth, GSM (4G) and GPS/GNSS functionality - This is it!Also note that this board is designed to use EITHER directly connected 4G/GPS antennas or uFL snap connected remote antennas on a custom enclosure.  This board has many applications including WiFi/GSM gateways, GPS/GSM tracking devices, or SMS remote command/control/logging devices.

Our SMSDev and GSMSMS Libraries fully support this device.


Price: $99.99
MeGGABoard 3G:

The MeGGaBoard is an Arduino Mega based GSM Gateway Board.  This unique board provides the ability to interface and communicate remotely via GSM Cell Phone Services.  Its basically a microcontroller and GSM cell phone on a single board.  This board supports 3G Voice, Data, and SMS services via an embedded SIMCOM5320A GSM Chipset for remote command/control/logging.  The board employs an Arduino Mega 2560 processor for maximum Arduino RAM, IO, and processing power.

This board also accepts standard arduino shields if you need additional expansion.

We also have an LED_Switch_Shield if you would a simple shield for LED display and Switch interface.

Our SMSDev and GSMSMS Libraries fully support this device.


Price $69.00


We also have an older 2G Version of this board (MeGGaBoard 2G) on clearance.  (Note that 2G service (or SIM) is NOT required for GPS functionality).  Clearance Price $20.00

EGGBoard 3G:

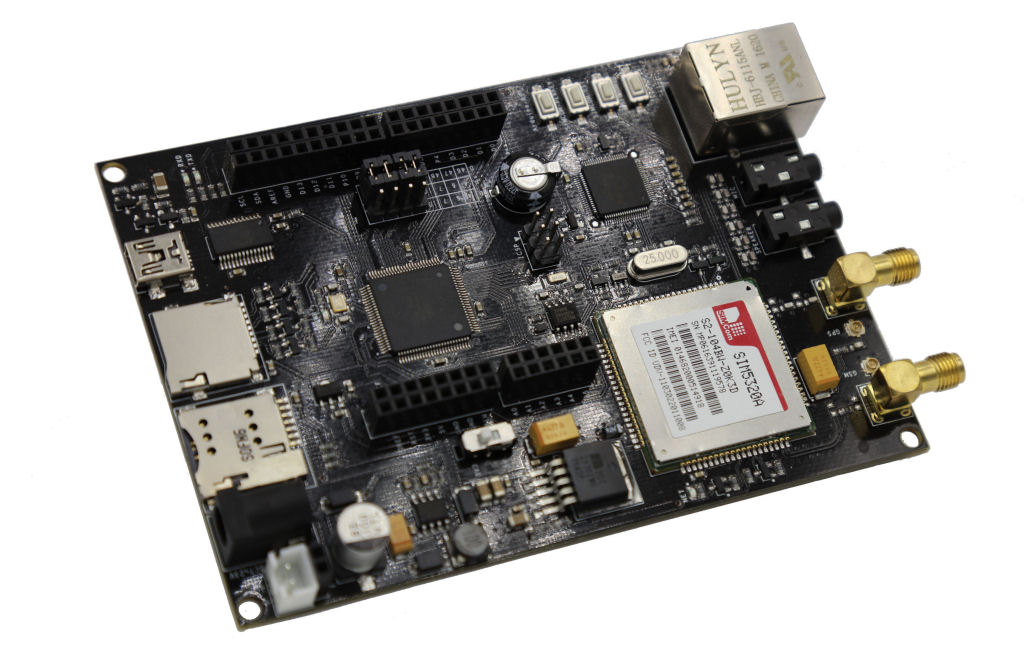

The EGGBoard is an Arduino based Ethernet to GSM Gateway Board.  This unique board provides the ability to interface and communicate directly between Ethernet and GSM Cell Phone Services (SMS).  Its basically an Arduino Mega2560 microcontroller, GSM cell phone, and ethernet interface all on a single board.  This board supports 3G Voice, Data, and SMS services via an embedded SIMCOM5320A GSM Chipset for remote command/control/logging.  The board employs an Arduino Mega 2560 processor for maximum Arduino RAM, IO, and processing power.

Use the board as an Ethernet to SMS gateway to continuously monitor computers on your network and send you an SMS text message if any of your servers go down or if network connectivity is lost.  Use the board as an SMS to Ethernet Gateway and send SMS messages to control systems or devices on your thernet Network.  Perfect for any type of communication/control between your cell phone(s) and devices on your ethernet network.

This board also accepts standard arduino shields if you need additional expansion.  Furthermore, jumpers are also provided to optionally remap the digital I/O pins being used by the onboard chips (D4, D6, D7, D10).  If you wish to use a shield that expects/provides signals to/from any of the above pins, they can easily be remapped to unused pins on the 2560 (D46, D47, D48, D49) by using these jumpers.  This unique design provides the ability to use virtually any Arduino shield without having to worry about a conflict with any of the onboard chips or functionality!

Check out our Software Page for Sample Code for the EGGBoard including:
- Monitor network addresses and send SMS notification if a system goes down
- Web Server which sends out SMS messages
- A pair of utilities (AutoIT/Arduino) which demonstrates how easy it is to implement FREE software which automatically sends SMS messages directly from your workstation/server - or - receive SMS messages to control/command events on your workstation/server.

We also have an LED_Switch_Shield if you would a simple shield for LED display and Switch interface.

Our SMSDev and GSMSMS Libraries fully support this device.


Price $79.00


We also have an older 2G Version of this board (EGGBoard 2G)on clearance.  You will also need a FOCA board to program the older 2G version of this board.  (Note that 2G service (or SIM) is NOT required for GPS functionality).  Clearance Price $25.00

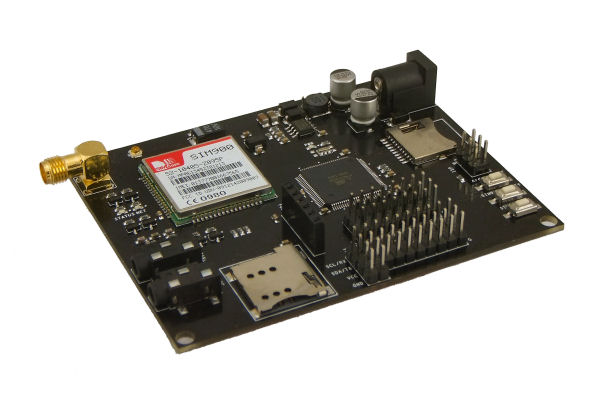

GBoardHS (2G):

Its like an Arduino Mega 2560 and a 2G Cell Phone (Voice/Data/SMS) all on one board!

GboardHS is a unique Arduino board designed and manufactured specifically for Haute Solutions.  The GBoard HS features an ATMega 2560 controller, SIM900 GSM/GPRS module, and a Micro-SD card slot. This board will add GSM/GPRS/SMS connectivity to your Arduino projects.  The SIM900 supports full Voice/Data/SMS connectivity for your arduino projects without requiring any additional Shields.  Additionally, the larger memory and IO capacity of the ATMega 2560 controller leaves lots of space for larger scripts with extended storage requirements.  (ATMega 2560 has 256K RAM vs ATMega 328 with 32K RAM).   It’s great for anything from home automation to robot control.

We also have USB Serial Interface (FOCA) for programming.

Our SMSDev and GSMSMS Libraries fully support this device.

 (Note 2G Service has largely been discontinued in the USA.  However, the embedded GPS Functionality does NOT require a SIM or active cellular service!)

(Was $59.00)  CLEARANCE: $15.00

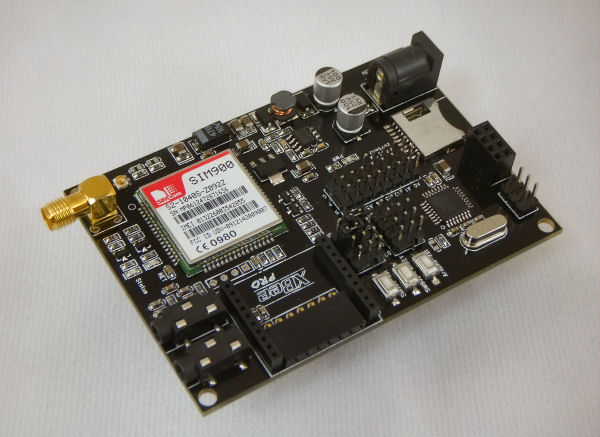

ITeadStdudio GBoard (2G):

Its like an Arduino and a Cell Phone (Voice/Data/SMS) all on one board!

This is the little brother to the GBoardHS.  The Gboard is an Arduino board which features an ATMega328P controller, SIM900 GSM/GPRS module, a Micro-SD Card slot, an XBee socket, and an nRF24L01+ wireless interface. This board will add wireless XBee / nRF24L01+ control as well as GSM/GPRS connectivity to your projects. This board is great if you don't need the full memory capacity of the ATMega 2560 or want the added benefit of an XBee header or nRF24L01+ interface.

 (Note 2G Service has largely been discontinued in the USA.  However, the embedded GPS Functionality does NOT require a SIM or active cellular service!)

We also have USB Serial Interface (FOCA) for programming.

More Information: ITeadStudio

 (Note 2G Service has largely been discontinued in the USA.  However, the embedded GPS Functionality does NOT require a SIM or active cellular service!)

Our SMSDev and GSMSMS Libraries fully support this device.


(Was $46.00)  CLEARANCE: $10.00

ESP32IO Board (Smoker PID Controller):

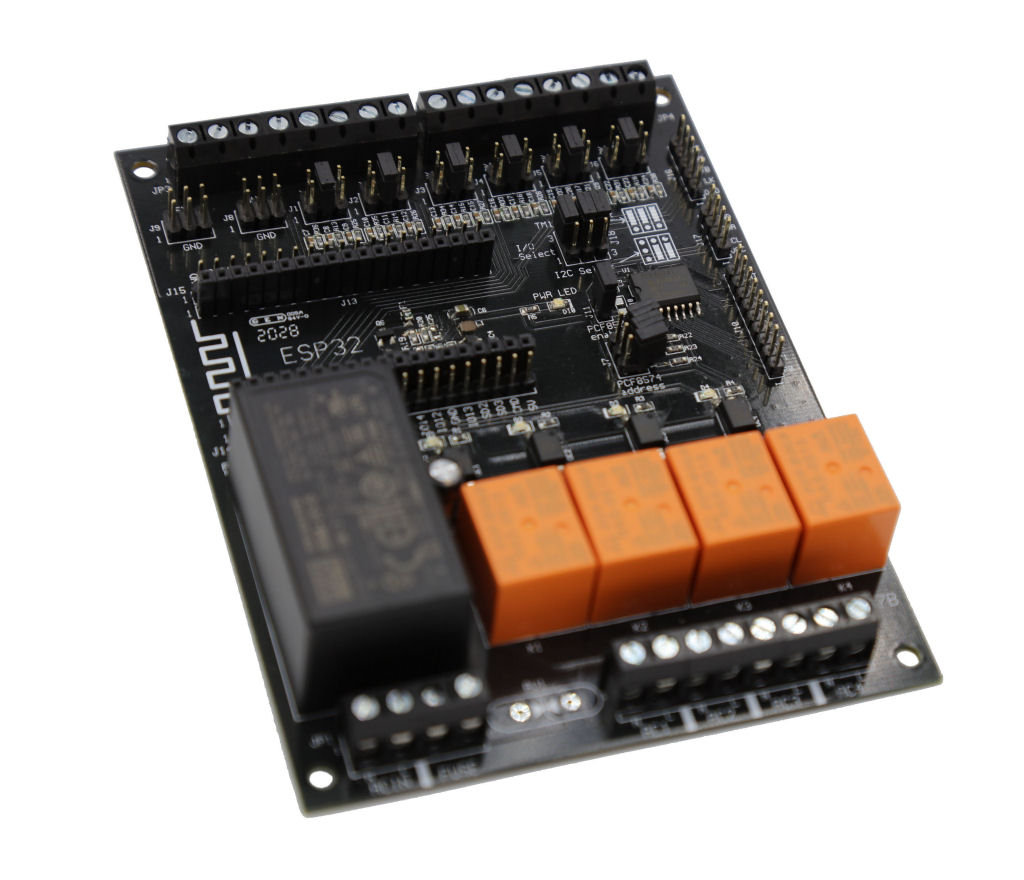

The ESP32IO Board is primarily intended to provide an expansion board which can be used to employ the services of an inexpensive ($11.00) ESP-WROOM-32 (not included) into a full featured PID Smoker Controller.  Despite being designed primarily to be a self-contained smoker controller, the integrated I/O, display, keypad, and power supply functionality provides a very capable platform for a variety of I/O services.

- A 38-pin socket to accept readily available and inexpensive ESP-WROOM-32 processors (not included)

- WiFi Communications via ESP32

- Bluetooth Communications via ESP32

- Built-in 120V Power Supply with fused protection.  (No external Power Supply required)

- FOUR 120V Relays (Auger, Igniter, Fan, {other})

- SIX independantly configurable (3K, 10K, 100K) voltage divider connections to support a variety of industry standard Thermal Probes (ET732, ET733,TP08S,TP20, TP25, TP17, TP16, TP10, TP09, TP08, TP-08S, TP-07, TP06S, TP04, etc ).  Probes can be used to monitor/control pit temperature as well as report internal meat temperatures.

- Integrated TM1638 support for displays and keypads

- I2C support for displays and keypads

- Integrated PFC8574 providing I2C suppoprt for discrete keypads


While our PID Smoker Controller project is still in the works,
we also have ESP32_IOShield, TM1638_ESP32, Thermistor, and I2CKeypad libraries to support this device.


Price: $69.00

Microcontroller Power Controller Kit:

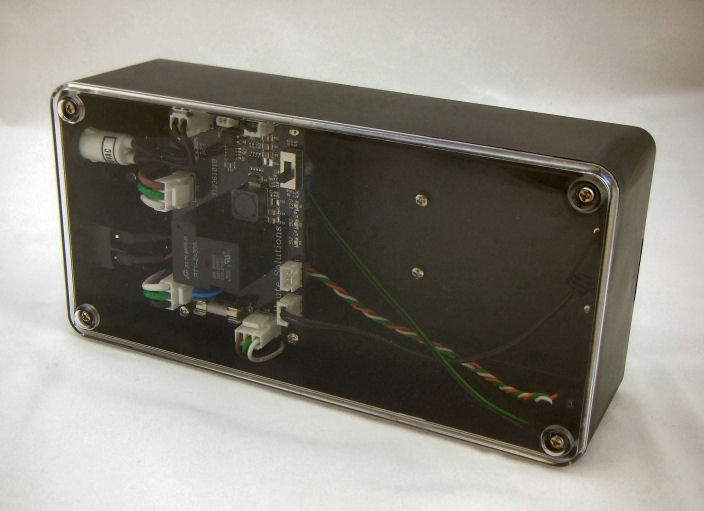

The Microcontroller Power Controller Kit is effectively the SMS Power Controller device without a System Board.  This platform is ideal for designers and experimentors who want to have a single enclosure with integrated microcontroller power supply, 120V relay activation circuit, and room for mounting a variety of microcontrollers (Arduino and others).  We supply the enclosure, power supply, and relay circuit - You pick the controller, shields, and sensors to meet your requirements!

  • Complete foundation for remote or automated power control of 120V devices
  • All-in-one enclosure contains 120V power relay circuit, microcontroller power supply, and mounting area for your choice of microntroller platform
  • Microcontroller power supply is 5V, 9V, 12V selectable (2A max)
  • 120V/20A switching/relay capacity using a single microcontroller digital I/O pin (3VDC @ 3-5ma)
  • Single enclosure, single power cord, single power outlet
  • Sufficient space in enclosure to mount even the largest microcontroller platforms (Arduino, Mega, Stalker, IBoard, GBoard, RBoard, etc)
  • Sufficient space in enclosure to stack one or more shields
  • Detachable baseplate and stand-offs included for maximum microcontroller mounting flexibility
  • Clear enclosure cover for visibility of dignostic LED's
  • Enclosure can be wall-mounted using a built-in, extendable, hanging tab
  • Both a standard barrel connector, and discrete pin cable, provided for the microcontroller power supply
  • Control a 120V power circuit REMOTELY with your choice of microcontroller and shields (WiFi, Ethernet, GSM, Bluetooth, etc)
  • Control a 120V power circuit AUTOMATICALLY with your choice of microcontroller and sensors (Time, Temperature, Light, Water Level, Proximity, etc)

[Download User Manual] (Details and Lots of Photos)


Price: $99.00

OLED Display (16x2):

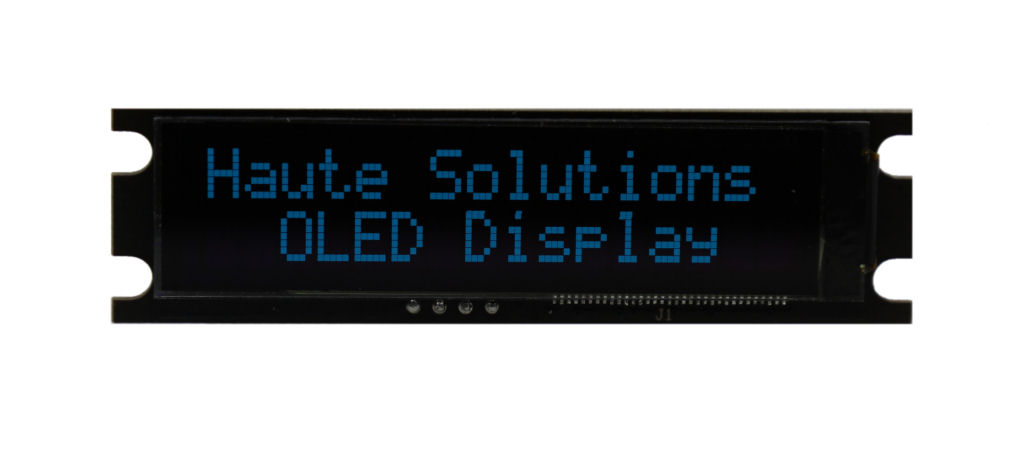

This is an OLED Display we designed specifically to fit into smaller spaces.  It is 78mm wide by 21mm tall and uses an SSD-1311 chipset (compatible with US2066 libraries)

Our OLED_1311 Library fully supports this device.


Price: $39.00

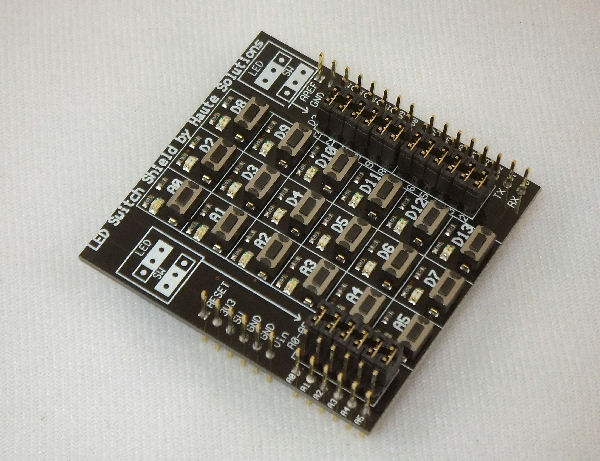

LED Switch Shield:

The LED Switch Shield is a very straight forward, yet powerful, accessory for any Arduino developer.  This shield has an LED and a switch circuit set aside for each digital and anolg pin on the Arduino (except D0 and D1).  This includes pins D2-D13 and A0-A5.  The shield, quite simply, lets you select a pushbutton switch, or LED, or nothing at all, to any of the above pins.  Each LED has a current limiting resistor and each switch has a pull down resistor.  This shield is designed to fit the standard Arduino shield interface.

Do you need a couple of control switches, or a couple of indicator LEDs for your Arduino project?  Are some of your pins already used up by onboard hardware interfaces?  Just slide this shield onto your arduino and you can use any/all of your available digital/analog I/O pins for control or diagnostics!  Simple, flexible, and cost effective!

In addition to jumper selection for each pin (LED or Switch), you can also choose not to connect the pin at all (no jumper), or even use a specific jumper pin as an I/O connection for external service.

LEDs in D8-D13 column are Green.  LEDs in D2-D7 column are Yellow.  LEDs in A0-A5 column are Red.

This shield works great as a control and diagnostics interface for our EGGBoard or MeGGaBoard!

Our LEDSwitchShield Library fully supports this device.


Price $14.00

GBoard Auxiliary LED PCB:

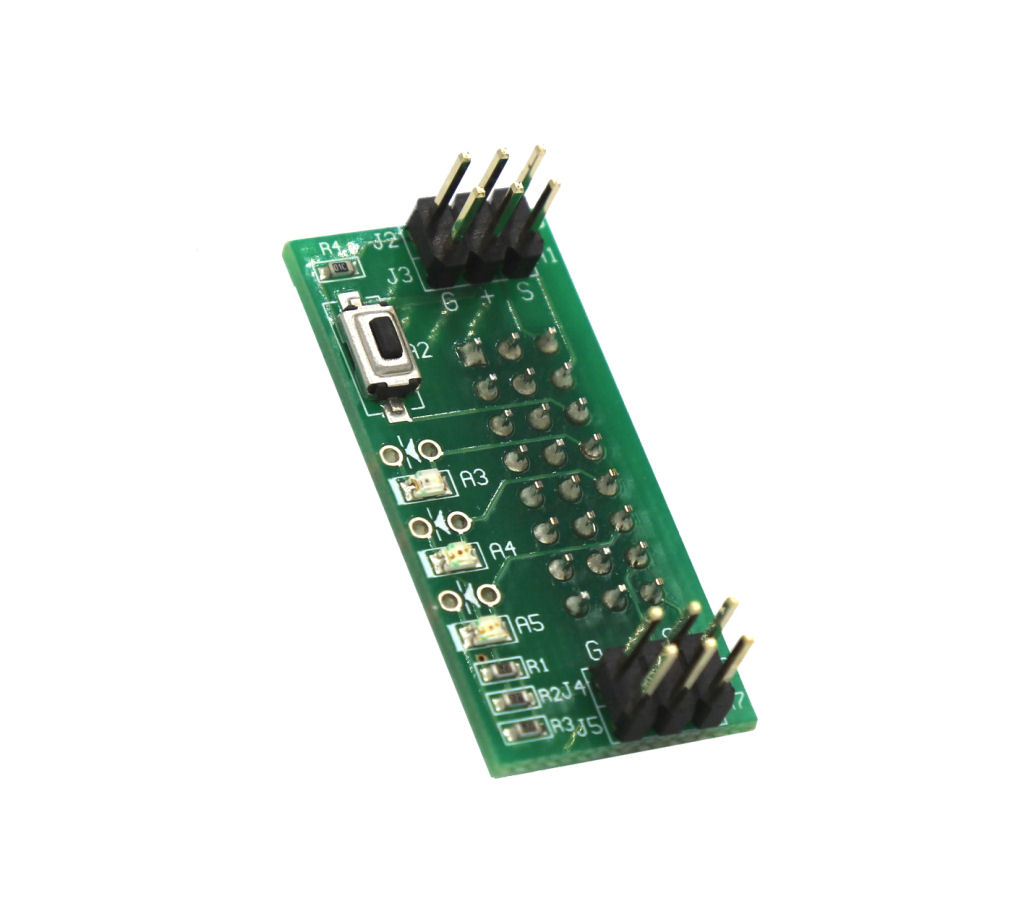

This little PCB mounts directly on top of the ITeadStudio GBoard.  It has three LEDs (Red, Yellow, Green) and two pin pairs which can be used for input or output.


(Was $15.00) Clearance Price: $5.00


Wiring Shield for ESP324G:

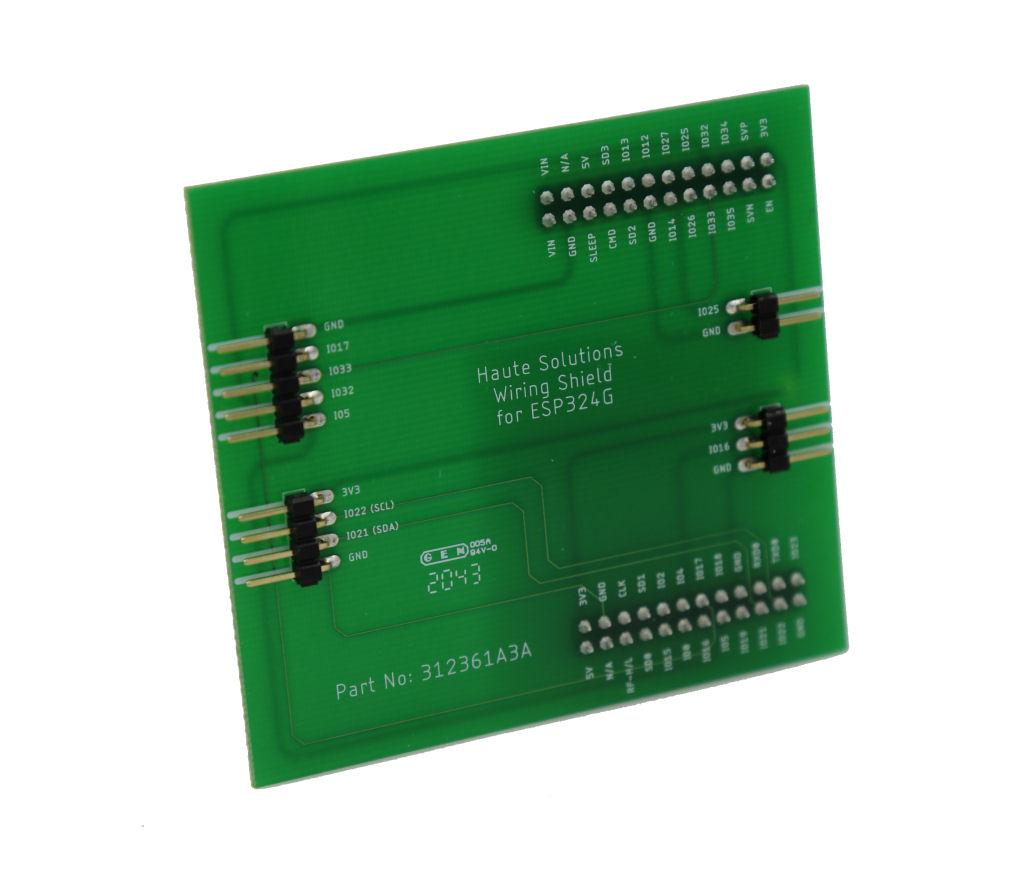

This little PCB mounts directly on top of the ESP324G.  It helps make wiring projects with OLED and/or 4-Button Pads a little cleaner.

Price: $6.00

Wiring Shield for MeGGaBoard/EGGBoard:

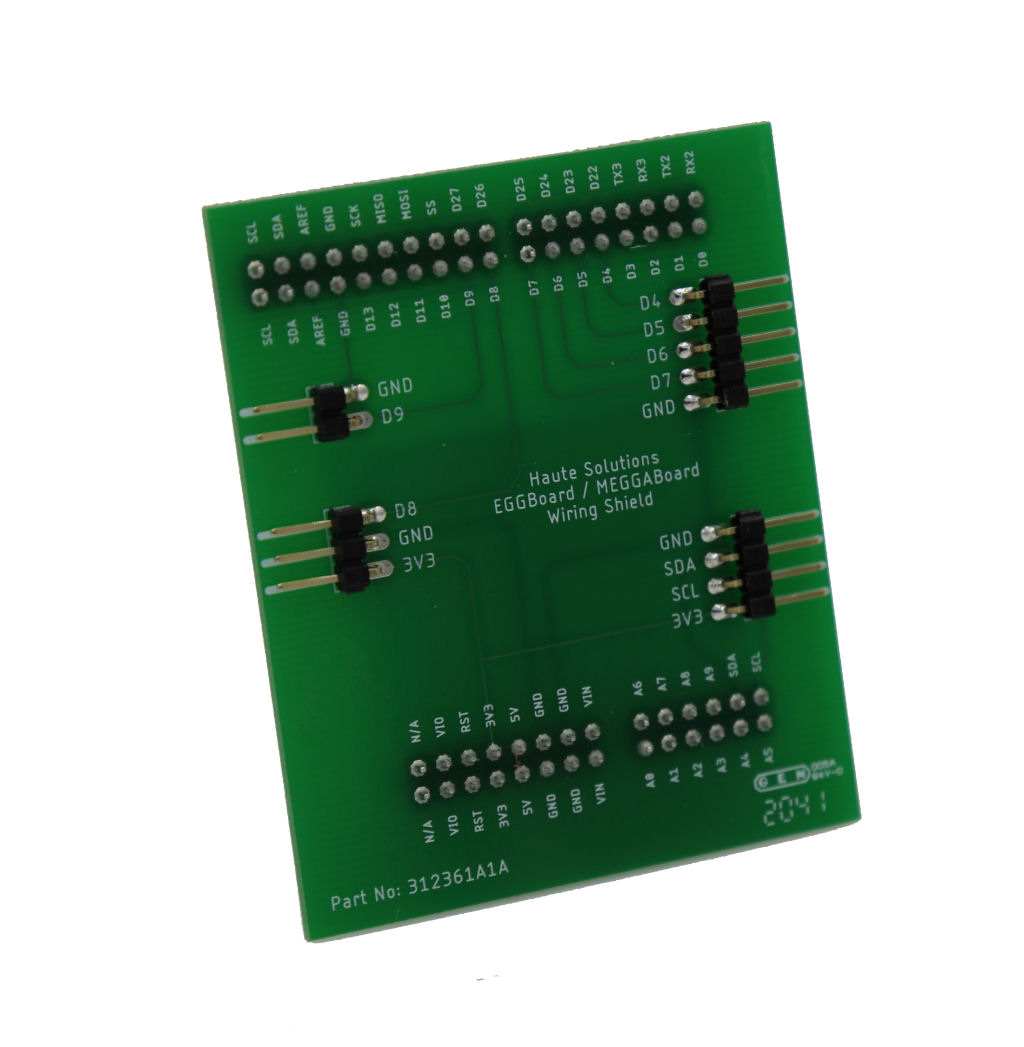

This little PCB mounts directly on top of the MeGGaBoard or EGGBoard.  It helps make wiring projects with OLED and/or 4-Button Pads a little cleaner.


Price: $6.00

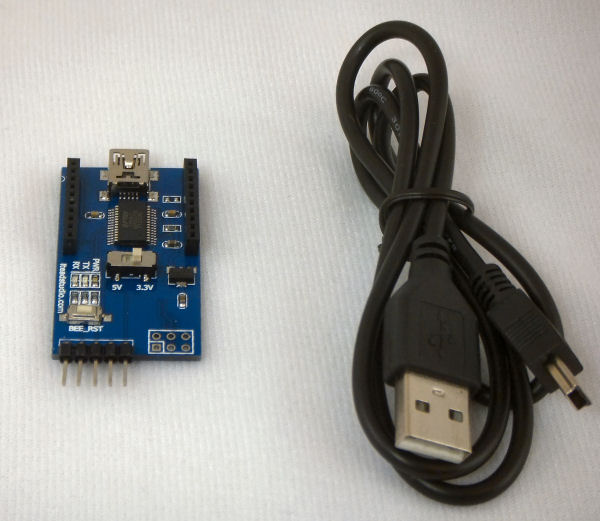

FOCA Kit (USB/Serial Converter):

A USB to Serial converter is required to program many of our older (2G) Arduino based boards.  The FOCA Kit provides this capability.  The kit includes both the USB to Serial converter as well as a USB cable.  Rather than implementing the FOCA chipset on each and every board, we simply offer the conversion board as a seperate option  to help save cost on the boards.  One FOCA board is all that is needed to program multiple boards (EGGBoard 2G, GBoardHS, GBoard).


(Was $15.00) Clearance Price: $5.00

12V 2A Power Adapter:

This 12V-2A Power Adapter is perfect for powering standalone ESP324G, EGGBoard, MeGGaBoard, GBoardHS, or GBoard microcontrollers or projects.  (The GSM chipset on these boards requires a bit more power than a "naked" Arduino).


Price $12.00

5V 2A Power Adapter:

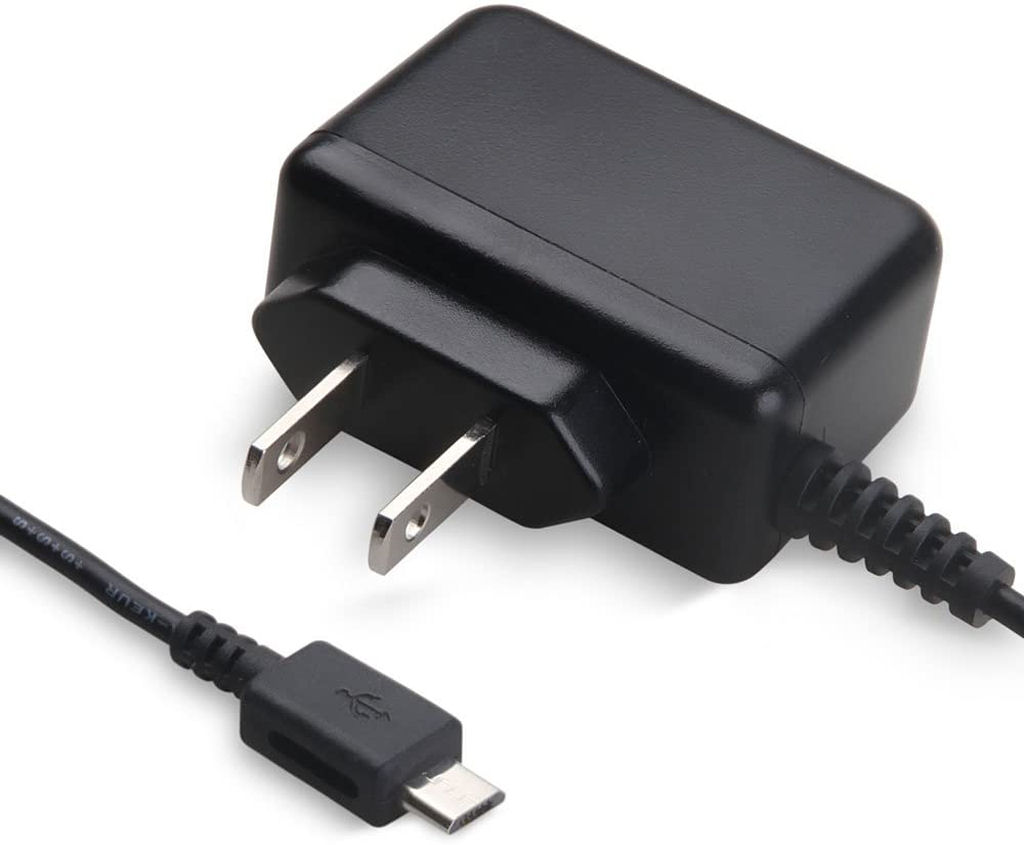

This 5V-2A Power Adapter is perfect for powering standalone ESP32 microcontroller boards.


Price $12.00
