SMS Alarms and Accessories

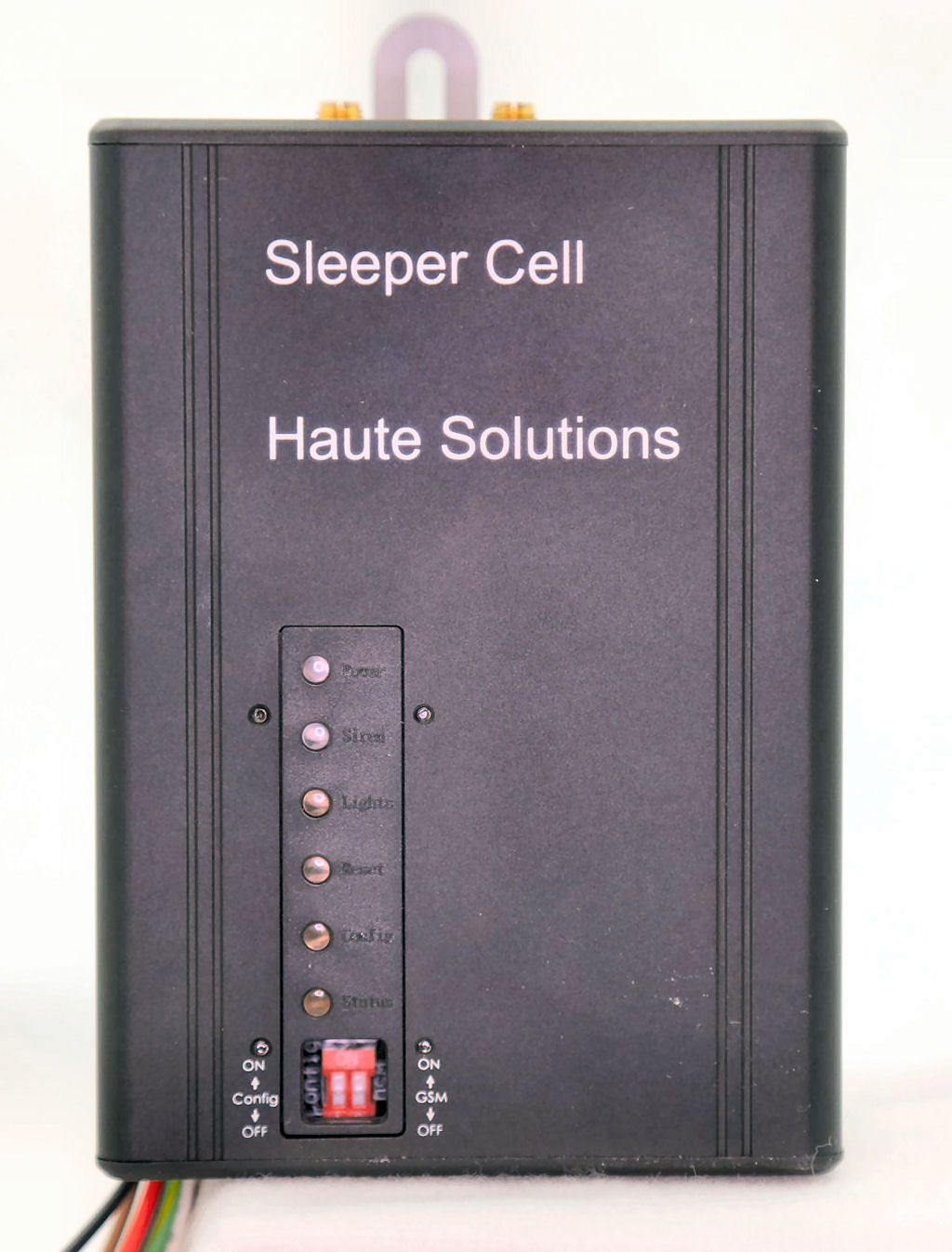

SleeperCell Alarm

The Sleeper Cell Alarm System is a unique alarm system designed specifically for owners of vehicle which require long term storage.  The Sleeper Cell is not a “Low Power” alarm system - it is, in fact, a “No Power” alarm system (until tripped).  The Sleeper Cell not only provides the traditional flashing lights and siren, it also provides remote SMS Text notification and real-time GPS location reporting if so configured.

Unique capabilities of the Sleeper Cell:

  • The Sleeper Cell draws absolutely no power until the alarm is activated/tripped.  This is ideal for installations where the protected vehicle may sit for a very long time with no draw or charge to its onboard battery system.  This will ensure that the alarm system will never draw down the charge on an otherwise idle battery (unless tripped).  Perfect for Car/Race/Travel Trailers, Boats,Cabins, etc…
  • There are no monthly fees required to use the Sleeper Cell Alarm.  You may use a GSM compatible SIM card from the provider with a service plan of your choice.  There are multiple GSM cellular providers who offer pay-as-you-go service and do not charge a monthly fee.  In fact, you can use the sleeper cell as a standalone alarm system without any GSM service at all.
  • Similarly, the Sleeper Cell does not require any subscription service to monitor the status or location of your vehicle.  It communicates directly with your cell phone via SMS text messages.
  • The Sleeper Cell will send an SMS (Text) Alert Message to designated cell phones (up to 5) when the alarm is activated.  This is ideal for vehicles which are stored remotely, or in an isolated location, with no one to watch them.  Providing multiple SMS notification contacts helps ensure the closest individual can respond.  (GSM/SMS function can be disabled).
  • The Sleeper Cell will provide real-time GPS Location information within the SMS Alert Message.  It will continue to send real-time GPS Vehicle Location updates on a user defined interval (every 5 min, 10 min, etc).  GPS location is not only provided in raw Latitude and Longitude coordinates, but a custom clickable link is also included in each SMS message.  Clicking this URL will automatically bring up a graphical map which pin points the real-time location of the vehicle.  This is ideal for real-time tracking of a stolen vehicle.  (GPS Function can be disabled).
  •  Once activated/tripped, the Sleeper Cell will accept SMS input from any of the “authorized users” on the SMS notification list.  This includes simple commands to remotely disable the siren/lights, remotely reset the alarm system itself, or interactively request a real-time GPS location of the vehicle.
  • Once activated/tripped, the Sleeper Cell will also act as an SMS communication hub for all users on the Notification List.  An SMS Recipient can send a simple SMS reply back to the Sleeper Cell and it will forward that message to everyone on the Notification List.  This is useful if one recipient wishes to inform all others that he/she will be investigating the issue or perhaps tripped the alarm by mistake.
  • The Sleeper Cell may be configured as a “Silent Alarm” if desired.  This will prevent any local indication that the alarm has been tripped (no flashing lights or siren).  It will, however, send SMS Alert Messages when the alarm is tripped/activated and continue to send real-time GPS position updates at the user specified interval.  This feature is useful to implement a more stealthy profile which may prevent thieves or vandals from locating/disconnecting the alarm.
  • The Sleeper Cell Alarm is completely configurable via simple SMS text messages (unless configured for “standalone” operation).  No need to download/install proprietary “Apps” for your smart phone.  In fact, any phone that supports text messaging can be used to configure and receive alerts from the Sleeper Cell.
  • The Sleeper Cell can be configured for multiple levels of functionality: as a standalone alarm (requiring no GSM or GPS functionality), for simple SMS Text Alert capability, or with full SMS Text Alerts which contain real-time GPS location information.  Start simple and add functionality as desired.  No change in the core hardware or software is required.
  • Maybe best of all, the Sleeper Cell is based on Open Source Hardware (Arduino) and we have released the firmware under Open Source licensing.  Haute Solutions will maintain the firmware source code on our web site for public access.  The Alarm System is easy to update and program (using a free toolset and a common USB cable).  Individual customers can download the firmware source code to make changes to the core functions if so desired.  Haute Solution encourages all users of the product to upload any variations in the firmware code so we can make this alternate firmware available to the entire owner community (in the spirit of Open Source).  The source code, however, may NOT be used or modified for use in any commercial products other than the Sleeper Cell Alarm.

Please take a look at the full documentation for the SleeperCell Alarm.

Please see below for examples of readily available accessories you might consider for this alarm.

The firmware for the SleeperCell Alarm is Open Source and can be freely downloaded.

Price $299.00





SuperCell Alarm

The Super Cell Alarm System is a unique alarm system designed specifically for owners who want a continuous method to monitor the status of their equipment as well as its current geographic location (via GPS).  The Super Cell is constantly on, monitoring your vehicle, and waiting for commands via SMS.  The Super Cell has 3 separate input triggers and 4 separate output relays.  Each trigger and relay can be configured independently with respect to priority and function.  The Alarm will report its status and GPS location at any time (even if NOT currently triggered).  If the Alarm is tripped, it can control 4 separate outputs (i.e. Siren On, Brakes On, Marker Lights Flashing, Interior Lights On) and send SMS updates (inc GPS location) at specified intervals.

Unique capabilities of the Super Cell:
  • The Super Cell Alarm is completely configurable via simple SMS text messages.  Any phone that supports text messaging can configure the Super Cell. (No proprietary Apps required!  No O/S limitations!)
  • The Super Cell Alarm will notify all recipients (up to 5) when the alarm is tripped via simple SMS messages.  This will even include the name of the specific trigger which was tripped (i.e “Door Switch”, “Trailer Motion” , etc)  This is ideal for vehicles which are stored remotely, or in an isolated location, with no one to watch them.  Providing multiple SMS notification contacts helps ensure the closest individual can respond.  Any phone that supports text messaging can receive Super Cell alert messages.  (No proprietary Apps required!  No O/S limitations!).  (GSM/SMS function can be disabled).
  • The Super Cell will provide real-time GPS Location information within the SMS alert messages.  It will continue to send real-time GPS Vehicle Location updates on a user defined interval (every 5 min, 10 min, etc).  GPS location is not only provided in raw Latitude and Longitude coordinates, but a custom clickable link is also included in each SMS message.  Clicking this URL will automatically bring up a graphical map which pin points the real-time location of the vehicle.  This is ideal for real-time tracking of a stolen vehicle.  (GPS Function can be disabled).
  • The Super Cell will provide GPS location on request (even if the alarm is not currently tripped).  You can ask for the status and location of your vehicle at any time!
  • The Super Cell continually monitors the battery supply voltage.  It will send out an SMS message if the supply voltage gets low.  If you leave your vehicle unattended for long periods, the Super Cell will send you an SMS message when the battery needs charging.
  • There are no monthly fees required to use the Super Cell Alarm.  You may use a GSM compatible SIM card from the provider with a service plan of your choice.  There are multiple GSM cellular providers who offer pay-as-you-go service and do not charge a monthly fee.  In fact, you can even use the Super Cell as a standalone alarm system without any GSM service at all.
  • Similarly, the Super Cell does not require any subscription service to monitor the status or location of your vehicle.  It communicates directly with your cell phone via SMS text messages.
  • The Super Cell will automatically send out a STATUS SMS message on the first day of each month.  This will not only help confirm the alarm is operational but also serves as a keep-alive message for some prepaid cellular providers which require minimal usage.
  • Once activated/tripped, the Super Cell will also act as an SMS communication hub for all users on the Notification List.  An SMS Recipient can reply with a simple SMS reply back to the Super Cell and it will forward that message to everyone on the Notification List.  This is useful if one recipient wishes to inform all others that he/she will be investigating the issue or perhaps tripped the alarm by mistake.
  • The Super Cell has 3 independent triggers.  Each trigger can be independently configured with respect to priority, output relay control, and reset time.  Triggers can also be independently configured to activate based on a negative input (switch to ground) or a positive input (switch to +12V).  You choose what to wire to your triggers, what priority they should be given, what outputs they should activate, and how long they should take to reset!
  • The Super Cell has 4 independent 12V output relays.  Each output can be independently configured to turn on, flash, or even be disabled.  You may want to turn on your siren circuit, but flash your marker lights when the alarm is tripped.  You choose what to wire to your output relays and how they should be controlled!
  • The Super Cell may be configured as a “Silent Alarm” if desired.  Maybe you want to sound the siren and flash the lights if the door is opened.  However, you might also want to signal a silent alarm if the trailer is hooked up and moved.  This will allow you to continue to get SMS alerts with GPS info to track the vehicle location without alerting the vandals who will try to disable an alarm.  By using the trigger priority feature, you can decide which triggers provide a visual/audible alert and which triggers dictate a more stealthy approach to notification.
  • The Super Cell alarm may even be used as a GPS tracking device if no alarm function is desired.  The Super Cell will return real time GPS location information on demand regardless of Alarm functionality.
  • The Super Cell is password protected.  Only users who have validated their cell phone numbers with the password can control the alarm and receive notifications.  Once your cell number is validated you will not need to authenticate again.
  • The Super Cell can be configured for multiple levels of functionality: as a standalone alarm (requiring no GSM or GPS functionality), for simple SMS Text Alert capability, with full SMS Text Alerts which contain real-time GPS location information, or even as a simple GPS tracking device.  Start simple and add functionality as desired.  No change in the core hardware or software is required.
  • Maybe best of all, the Super Cell is based on Open Source Hardware (Arduino) and we have released the firmware under Open Source licensing.  Haute Solutions will maintain the firmware source code on our web site for public access.  The Alarm System is easy to update and program (using a free toolset and a common USB cable).  Individual customers can download the firmware source code to make changes to the core functions if so desired.  Haute Solution encourages all users of the product to upload any variations in the firmware code so we can make this alternate firmware available to the entire owner community (in the spirit of Open Source).  The source code, however, may NOT be used or modified for use in any commercial products other than the Super Cell Alarm.
Please take a look at the full documentation for the SuperCell Alarm.

Please see below for examples of readily available accessories you might consider for this alarm.

The firmware for the SuperCell Alarm is Open Source and can be freely downloaded.


Price $299.00

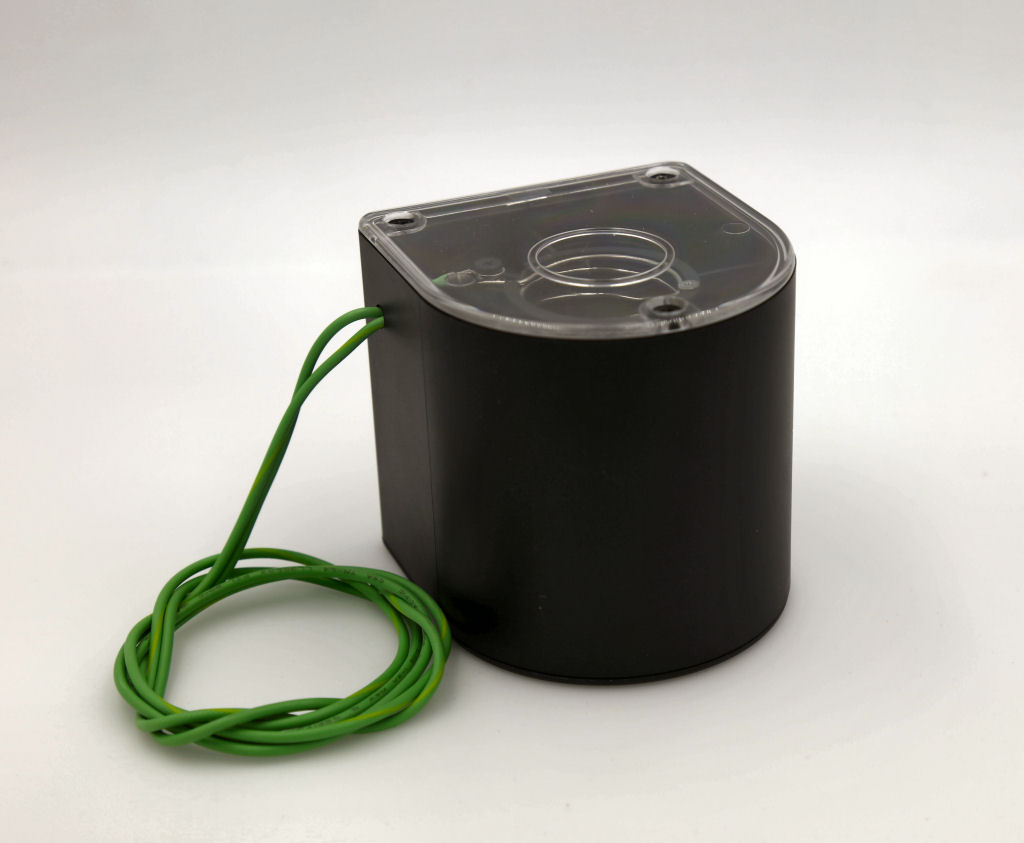

0V Motion Detector:

This is device is Motion Sensor custom designed specifically for use with our SleeperCell Alarm.  It is a physical vehicular "shaker" alarm which draws absolutely no power until it is "tripped".  The Sensor is designed to be mounted on a bulkhead, wall, or other solid surface.  It is adjustable and can be manually re-leveled any time the vehicle is moved.  A clear window makes it easy to level once a vehicle (trailer) is parked.  If any movement is detected, the Motion Sensor will close the associated electrical circuit.  Mechanical dampening is provided to ensure the alarm has time to sucessfully poll the sensor.

An adjustable mount is typically used to provide manual leveling once a vehicle (trailer) is parked.  Mounting holes are designed to accomodate a diamond base 1" RAM Ball Mount (not included).  For example:  Wall mount + Ball mount.


Price $19.00



Alarm Sensors and Accessories:

As generic alarm accessories are readily available through multiple retail sources, Haute Solutions does not stock or sell these items.  (Our Motion Detector is a very unique and designed specifically for the SleeperCell).  Here is a list of some accessories you might consider for your alarm.  Not all alarm systems will need any/all of these accessories, but this might serve as a useful source to get you started.  For simplicities sake, we have made every effort to identify what you might want from a single source (Amazon).  We provide these as examples only and do not specifically endorse or receieve any benefit from your purchase of these items.

It should be noted that the SleeperCell is a unique alarm which draws absolutely no power until it is tripped.  As such, you need to be sure that you are not trying to use any sensors or accessories with the SleeperCell which require a constant source of power as this would completely defeat the purpose of the alarm.

Depending on how you plan to use your alarm, here are some examples of accessories you might consider.  Please contact us if you would like to discuss the selection of accessories for your alarm.



The following accessories can be used with BOTH the SleeperCell and the SuperCell Alarms:

12V Siren: https://www.amazon.com/gp/product/B0009SUEXG

Combo GPS/GSM Antenna: https://www.amazon.com/gp/product/B083ZV45ZH

Pin Switches (Door): https://www.amazon.com/gp/product/B0148G6EEM

Magnetic Switches (Door): https://www.amazon.com/gp/product/B086GYJLML



The following accessories should only be used with the SuperCell Alarm (as they require a constant source of power):

Vibration Sensor: https://www.amazon.com/gp/product/B011QIFCUM

PIR (Human) Sensor: https://www.amazon.com/gp/product/B01N1F0C06

Microwave (Human) Sensor: https://www.amazon.com/gp/product/B078KN8948
