SMS Command/Control Products and Accessories




SMS (OLED) Power Controller (3G):

The SMS Power Controller is a stand alone device which accepts and processes standard SMS text messages for the control and scheduling of a standard 120V power outlet.  The SMS Power Controller can be used to remotely control, or schedule, power to a connected 120V appliance or circuit from virtually anywhere in the world!

  • Control power to any 120V device using simple SMS text messages from your cell phone
  • 3G, Quad-Band (850/900/1800/1900) Chipset
  • GSM Supported Protocols: EGSM/DCSI/PCSI/WDCMA/HSPDA
  • No monthly cell phone subscription required!
  • Does NOT require a smart phone application (iPhone/Android).
  • Use ANY cell phone that supports SMS Messaging.
  • Can be used anywhere Cell Phone coverage is available.
  • Does NOT require WiFi or Internet Service.
  • Turn ON/OFF immediately (via SMS or at the device itself)
  • Schedule ON/OFF times
  • Receive SMS confirmation when scheduled events occur
  • Request Device Status via SMS (On/Off and scheduled events)
  • Built-in 120V / 20A outlet and relay
  • OLED Display to report events, status, and configuration
  • Four cover-mounted buttons for diagnostics and reporting
  • Simple, easy to use, security prevents unauthorized access or control
  • Up to 20 Cell Numbers can be authorized for SMS control
  • This device is not tied to any service provider.  Use whatever GSM provider you want.
  • The device is fully programmed and ready to use (no programming required)
  • Software upgradable and programmable!  The Open-Source Arduino-based firmware is available on our web site for customization.  The capabilities and functionality of this device are fully customizable!  Advanced users can change the behavior of the device!

Please take a look at the User Manual for the SMS Power Controller for additional information.

In the spirit of Open Source, the firmware for the SMS Power Controller is being made freely available.  Download it, Play with it, Enhance it!  If you make changes to the software, and you think it might be of value to others, Why not email it back to us with a description of the modifications?  We would be happy to share the variants on our web site!  Please Visit our Software Page for More Info

Free SIM card provided (while supplies last) for fast phone number selection and registration (or use your own SIM card) TruPhone SIM Card Registration Instructions


Price: $249.00

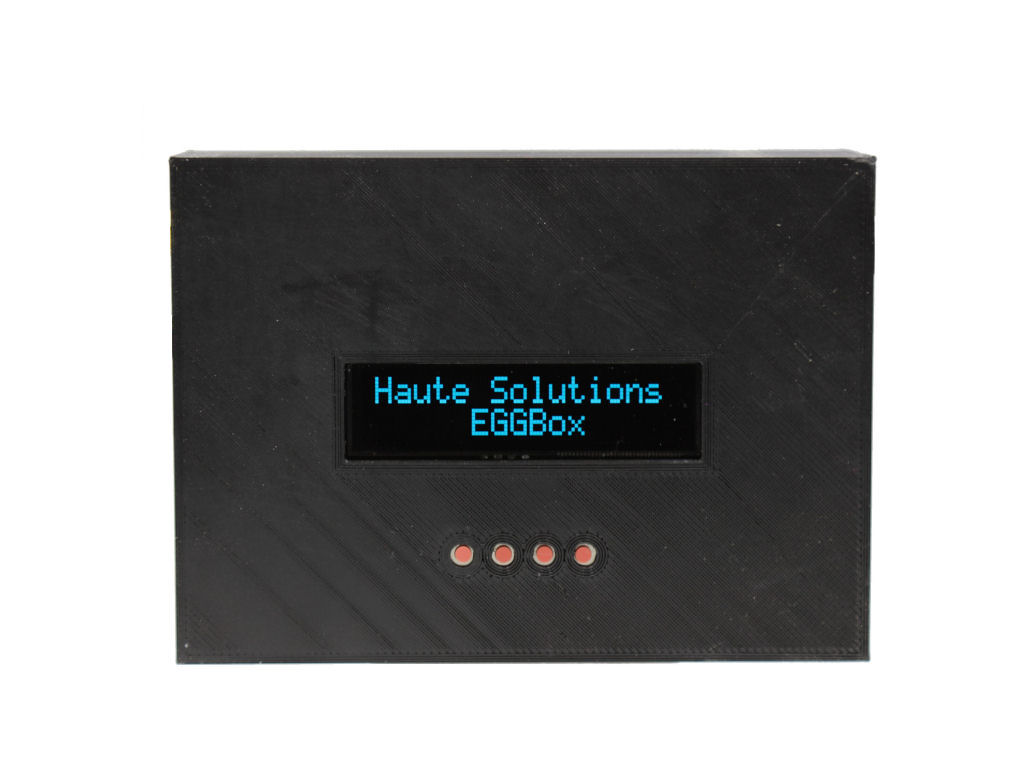

EGGBox (3G):

The EGGBox is an Ethernet to GSM Gateway device.  This device connects to your network via hardwired Ethernet.  This device is built around our EGGBoard.  It utilizes an arduino ATMega2560 processor with an embedded SIM SIM5320A 3G GSM chipset for full Voice, Data, and SMS services.  It is basically a cell phone for your network! This device also incorprates an OLED Display and 4 button keypad.

Whether you want to send informational SMS messages FROM your network, or send command/control SMS messages TO your network, the EGGBox provides all the hardware to do this easily and efficiently.  No Internet connection is required!

Please note that the enclosure used by this device is a custom designed and 3D Printed component.  As such, additional time may be required to print the enclosure.

(This product includes a 12V-2A Power Adapter)

The Open Source Firmware for the EGGBox is freely available to implement a fully functional SMTP to SMS gateway.  Although this software uses simple Linux Scripts and PostScript email services to implement this functionality, similar Windows services can also be developed using standardized TCP/IP ports for communication.  Please Visit our Software Page for More Info

Free SIM card provided (while supplies last) for fast phone number selection and registration (or use your own SIM card) TruPhone SIM Card Registration Instructions


Price: $199.00

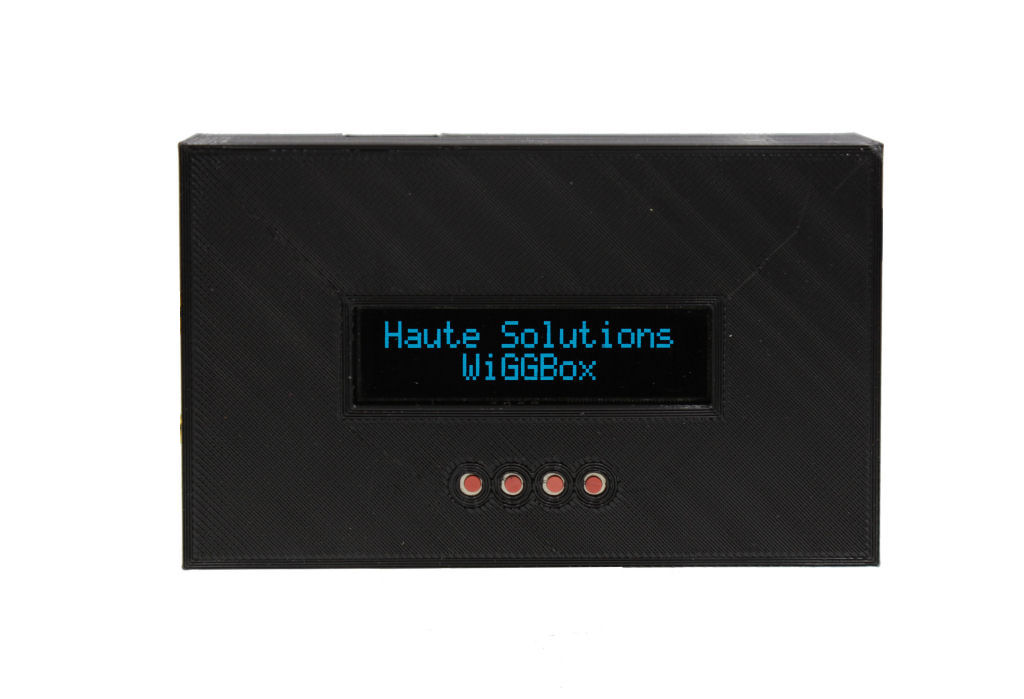

WiGGBox (4G):

The WiGGBox is an WiFi to GSM Gateway device.  This device connects to your network via WiFi.  This device is built around our ESP324G Board.  It utilizes an arduino ESP32 processor with an embedded SIM SIM7600A 4G GSM chipset for full Voice, Data, and SMS services.  (The ESP32 also provides integrated Bluetooth connectivity).  It is basically a cell phone for your network! This device also incorprates an OLED Display and 4 button keypad.

Whether you want to send informational SMS messages FROM your network, or send command/control SMS messages TO your network, the EGGBox provides all the hardware to do this easily and efficiently. No Internet connection is required!

Please note that the enclosure used by this device is a custom designed and 3D Printed component.  As such, additional time may be required to print the enclosure.

(This product includes a 12V-2A Power Adapter)

The Open Source Firmware for the WiGGBox is freely available to implement a fully functional SMTP to SMS gateway.  Although this software uses simple Linux Scripts and PostScript email services to implement this functionality, similar Windows services can also be developed using standardized TCP/IP ports for communication.  Please Visit our Software Page for More Info

Free SIM card provided (while supplies last) for fast phone number selection and registration (or use your own SIM card) TruPhone SIM Card Registration Instructions


Price: $219.00

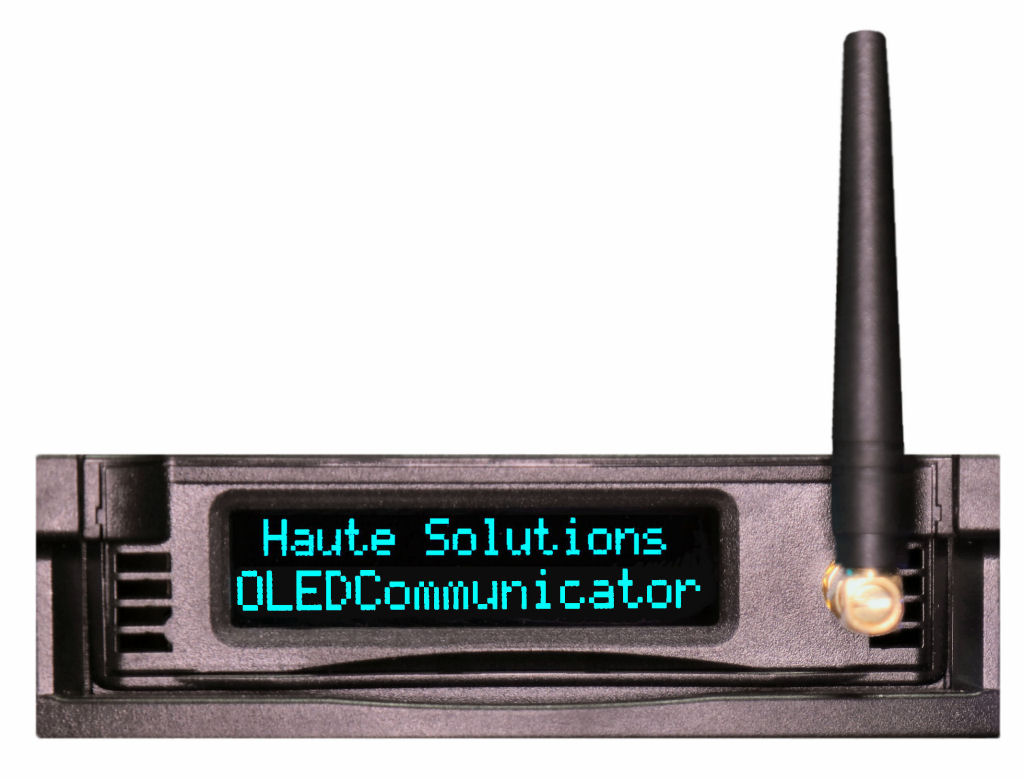

OLED Communicator (3G):

The OLED Communicator is basically a Cell Phone for your PC.  This device is installed into to your PC via a removable "Digital Intelligence" style USB drive tray.  This device is built around our MeGGaBoard.  It utilizes an arduino ATMega2560 processor with an embedded SIM SIM5320A 3G GSM chipset for SMS services.This device also incorprates an OLED Display for front panel messaging on your PC.

Whether you want to send informational SMS messages directly FROM your PC, or send command/control SMS messages directly TO your PC, the OLED Communicator provides all the hardware to do this easily and efficiently.  No internet connection is required!  The device can also be used as a convenient front panel display for your PC (independant of GSM connectivity).

Please take a look at the User Manual for the OLED Communicator for additional information.

The Open Source Firmware for the OLED Communicatior is freely available to implement a fully functional PC Command/Control system.  Send event-driven informational SMS messages directly from your PC.  Recieve inbound command/control messages to be processed directly on your PC.  No Internet connection is required.  Example source code is provided to implement these functions via the Command Line, embedded into your own executables (AutoIT Functions), and also via simple batch files and the power shell.   Please Visit our Software Page for More Info

Free SIM card provided (while supplies last) for fast phone number selection and registration (or use your own SIM card) TruPhone SIM Card Registration Instructions


Price: $199.00

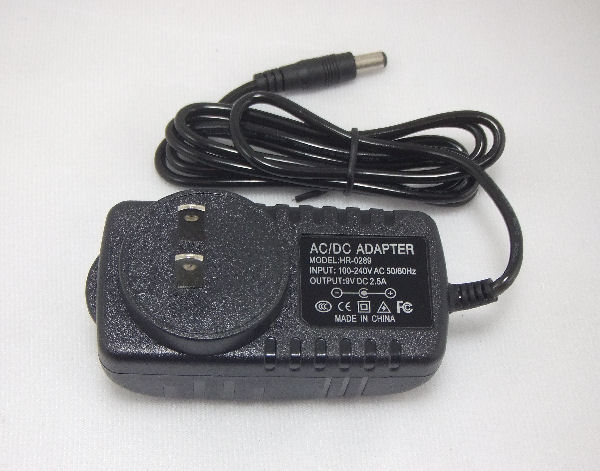

12V 2A Power Adapter

This 12V-2A Power Adapter is perfect as a replacement power supply for our EGGBox or WiGGBox products.

Price $12.00




Contact Information (Dealer Inquiries Welcome):

Haute Solutions, LLC    17165 W Glendale Dr    New Berlin, WI  53151

Sales[at]Haute-Solutions.com    //    Support[at]Haute-Solutions.com
